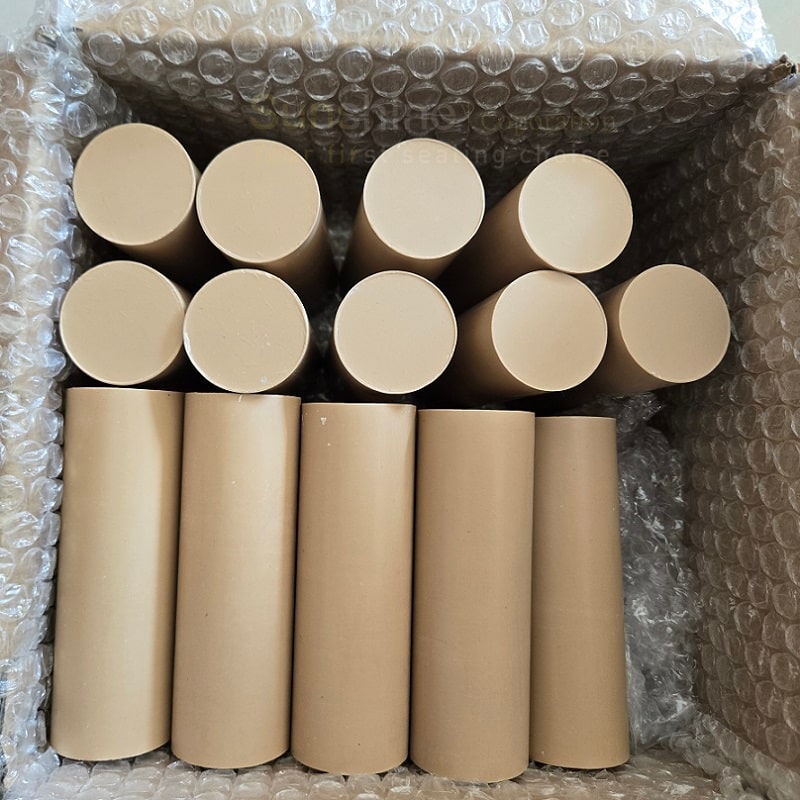

15% Ekonol-Filled PTFE
The Ekonol filler percentage can be 10%, 15%, 20% and 25%. Ekonol® is a highly crystalline, wholly aromatic polyester resin developed in the 1960.
Description
15% Ekonol-filled PTFE is a high-performance composite material composed of 85% PTFE and 15% Ekonol (an aromatic polyester). It provides superior wear resistance and high-temperature stability. It acts as a non-abrasive self-lubricator, making it a top choice for high-speed, high-temperature components running against soft mating surfaces.
Advantages
Unlike glass-filled PTFE, 15% Ekonol-filled PTFE compounds will not damage, score, or wear out steel or soft-metal counter-materials. Adding Ekonol improves dimensional stability and load-bearing capacity and reduces deformation under load. It exhibits a very low coefficient of friction, providing superior performance in dry, high-wear environments.
Applications
- High-temperature pump and valve components
- Wear rings, guide rings, and piston rings
- Heavy-duty shaft and mechanical seals
- Bearings
Physical Properties of Ekonol Filled PTFE
| Test Items | Test Methods | Unit | 10% Ekonol | 15% Ekonol |
|---|---|---|---|---|
| Density | ASTM D792 | g/cm3 | 2.18 | 2.15 |
| Hardness Shore D | ASTM D2240 | Sh.D | 60 | 58 |
| Tensile strength | ASTM D638 | mpa | 18 | 17 |
| Elongation at break 23°C | ASTM D4894 | % | 260 | 245 |
| Coefficient of static friction | ASTM D1894 | - | 0.16 | 0.18 |
| Thermal conductivity 23°C | DIN 52612 | W/K.m | 0.32 | 0.28 |
| Max water absorption | ASTM D570 | % | 0 | 0 |
