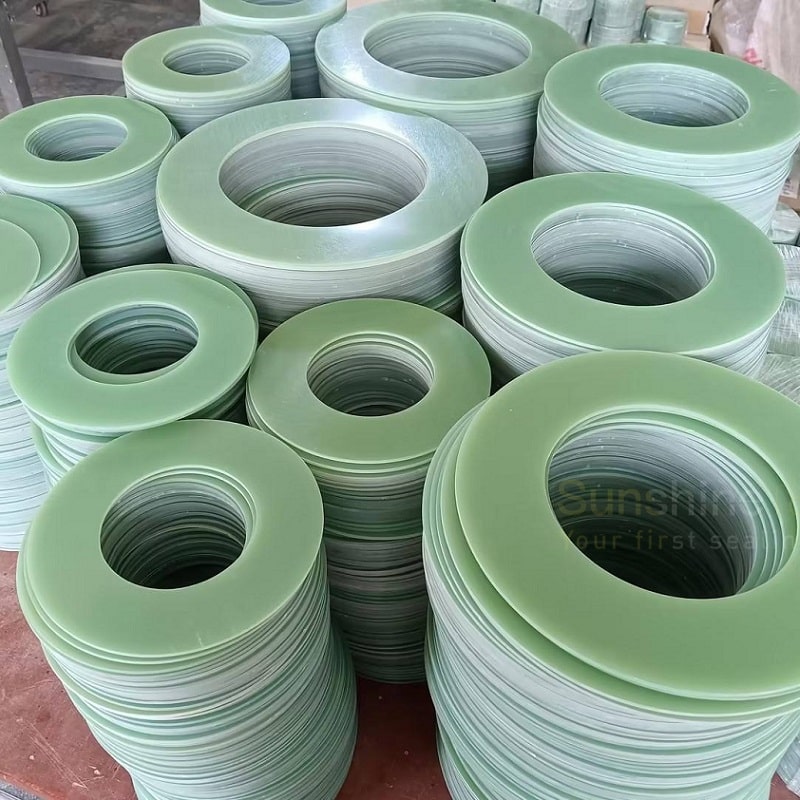

G-10 Epoxy Gasket Washer
It is often used for gasket kits that insulate flanges as an important component. We have large stocks.
Description
The G-10 epoxy gasket washer is a high-performance fastener isolation material. It is often used with bolt isolation sleeves such as G10 and G11 to protect bolts and prevent galvanic corrosion. It has exceptional tensile strength, near-zero moisture absorption, and excellent electrical and thermal isolation.
Depending on your application, you can easily source the gasket washers in various sizes, dimensions, and thicknesses. The G10 is light green in colour. FR4 material is also available.
Typical Properties of G10
| Properties | Test Methods | Unit | Value |
|---|---|---|---|
| Density | ASTM D792 | g/cm³ | 2 |
| Water Absorption, 24 hrs | ASTM D570 | % | 0.1 |
| Tensile Strength | ASTM D638 | psi | 45000 |
| Compressive Strength | ASTM D695 | psi | 65000 |
| Hardness | ASTM D785 | Rockwell | M110 |
| Coefficient of Linear Thermal Expansion | ASTM D696 | x 10-5 in./in./°F | 0.55 |
| Max Operating Temp | °C | 130-140 |
