G11 Epoxy Insulation Sleeve
G-11 is a glass epoxy material with some qualities similar to G-10. Its most noticeable feature is its capacity to resist extremely high temperatures.
Welcome to Learning about G11 Epoxy Insulation Sleeves

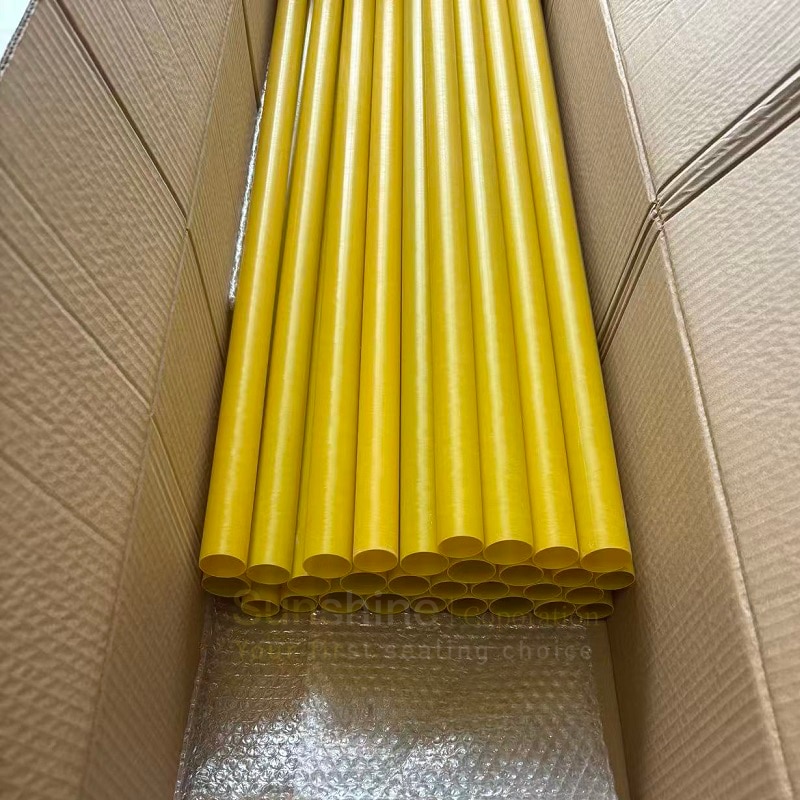

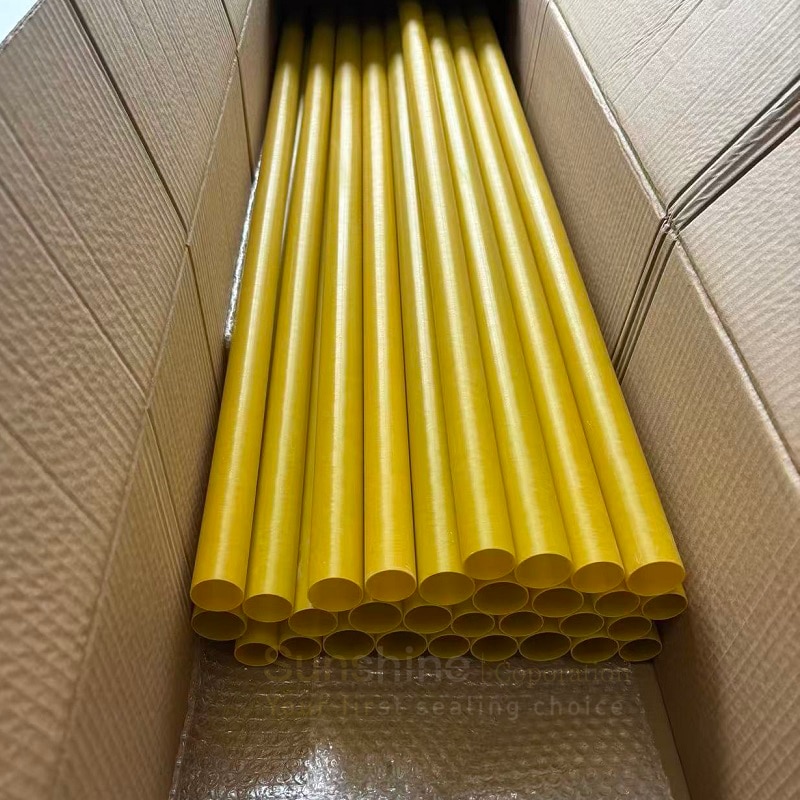

The G11 epoxy insulation sleeve is a high-performance fibreglass epoxy tube designed for heavy-duty electrical and thermal isolation. It is often found in high-voltage environments, power generation equipment, and flange isolation kits; it prevents electrical arcing, galvanic corrosion, and heat transfer.
As a premium grade under NEMA standards, EPGC22 G11 is rated as Class F (155°C) and Class H (180°C).
Advantages
The G11 epoxy insulation sleeve offers distinct physical, electrical, and thermal advantages over traditional plastics, ceramics, and other NEMA-grade laminates (like G10 or FR4). It has excellent heat resistance, continuing high-temperature resistance at 150°C, and remarkable chemical resistance and radiation resistance. It has excellent fire retardance and is rated UL 94 V-0.
Applications
Various industries, including bolt protection, chemicals, the military, medicine, and electronics, utilise the G11 epoxy insulation sleeve. It can give solid and dependable material solutions for these applications.
Typical Properties of Filament G11
| Properties | Test Methods | Unit | Value |
|---|---|---|---|
| Density | ASTM D792 | g/cm³ | 2 |
| Water Absorption, 24 hrs | ASTM D570 | % | 0.2 |
| Tensile Strength | ASTM D638 | psi | 37000 |
| Compressive Strength | ASTM D695 | psi | 63000 |
| Flexural Modulus | ASTM D790 | ksi | 4200 |
| Hardness | ASTM D785 | Rockwell | 112 |
| Coefficient of Linear Thermal Expansion | ASTM D696 | x 10-5 in./in./°F | 1.1 |
| Max Operating Temp | °C | 150 |
