Red Glass-Filled PTFE
We can make all kinds of coloured glass-filled PTFE-grade materials. Contact us for your any need.
Description

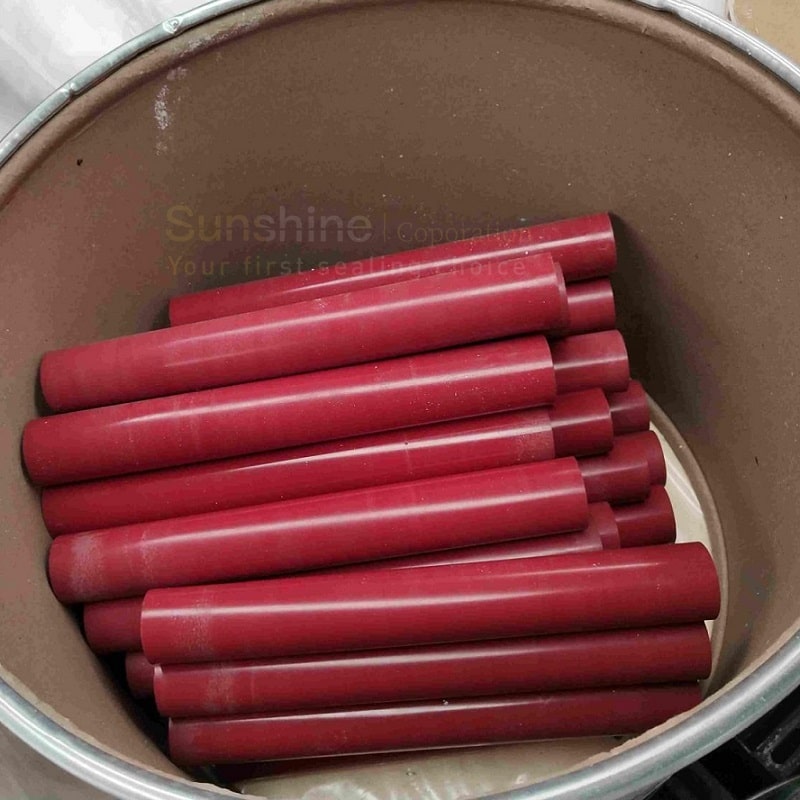

Red glass-filled PTFE rods, tubes and sheets are plastic composite materials made from PTFE and glass fibre (typically 5% to 25%). The addition of glass fibre improves structural integrity and significantly reduces creep and cold flow compared to virgin PTFE. The red colour is the result of red pigment added to PTFE.
Other colours, such as blue, green, and yellow, are also available.
Physical Properties of Glass-Filled PTFE
| Test Items | Test Methods | Unit | 10% Glass | 15% Glass | 25% Glass |
|---|---|---|---|---|---|
| Density | ASTM D792 | g/cm3 | 2.2 | 2.22 | 2.24 |
| Hardness Shore D | ASTM D2240 | Sh.D | 59 | 60 | 62 |
| Tensile strength | ASTM D638 | mpa | 23 | 22 | 21 |
| Elongation at break 23°C | ASTM D638 | % | 250 | 230 | 210 |
| Coefficient of static friction | ASTM D1894 | - | 0.15 | 0.16 | 0.18 |
| Thermal conductivity 23°C | DIN 52612 | W/K.m | 0.28 | 0.39 | 0.46 |
| Max water absorption | ASTM D570 | % | 0.013 | 0.015 | 0.02 |
