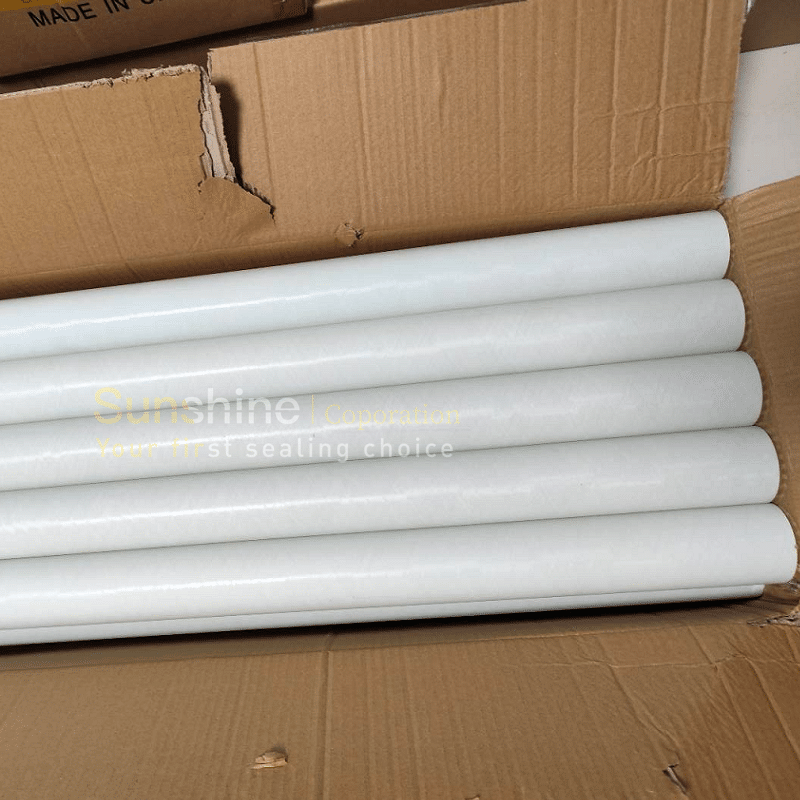

White G10 Epoxy Glass Tube
G-10 is an industrial thermoset laminated plastic composed of an epoxy resin binder and a glass epoxy composite, making it a popular choice for various electrical applications.
Welcome to Learning about White G10 Epoxy Glass Tube
The filament-wound white G10 epoxy glass tube is suitable for high-humidity and electrical insulation applications. This product provides consistent quality and excellent electrical properties under dry and humid conditions, as well as high flexural, impact, and bond strength at room temperatures. It complies with the requirements of EPGC21.
The G-10 is rated for continuous operation at 130°C and is often more durable than other materials, such as fibreglass, phenolic, and balsa wood.
Advantages and Features
The white G10 epoxy glass tube can operate over a wide range of temperatures and humidities. It has superb electrical properties, high mechanical strength, low water absorption and low dissipation factor.
Applications
The white G10 epoxy glass tube is suitable for bolt protection, chemicals, the military, medicine, and electrical use. It is also one of the most widely used non-metallics in cryogenic applications.
Typical Properties of Filament G10 Tube
| Properties | Test Methods | Unit | Value |
|---|---|---|---|
| Density | ASTM D792 | g/cm³ | 2 |
| Water Absorption, 24 hrs | ASTM D570 | % | 0.1 |
| Tensile Strength | ASTM D638 | psi | 45000 |
| Compressive Strength | ASTM D695 | psi | 65000 |
| Hardness | ASTM D785 | Rockwell | M110 |
| Coefficient of Linear Thermal Expansion | ASTM D696 | x 10-5 in./in./°F | 0.55 |
| Max Operating Temp | °C | 130-140 |
